INFORMATION DETAILS
ID: 13551145
|
Year: 2017
|
Make: WaterFurnace
|
Model: Intellistart Soft Starter
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
SELLER DESCRIPTION
|

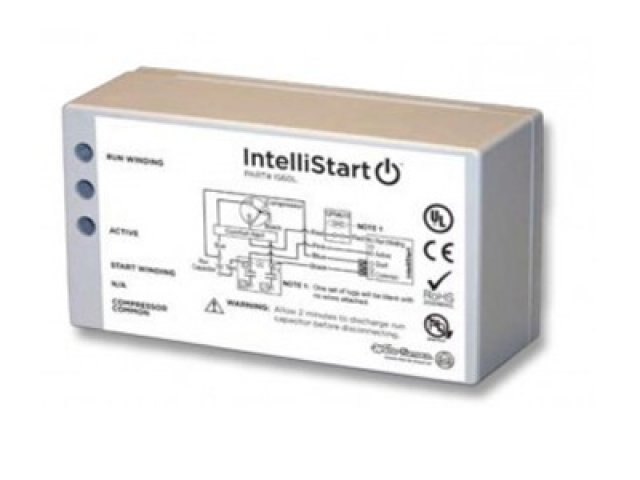

WaterFurnace's IntelliStart is a single phase soft starter which reduces the normal start current (LRA) by 70%. This allows the heat pump to more easily go "off-grid." Using IntelliStart will also provide a substantial reduction in light flicker, reduce start-up noise, and improve the compressor's start behaviour. IntelliStart is available in a field retrofit kit or as a factory option for all 5 Series and Synergy3D units |
|
Features
|
-
Compressors able to be started with even lower currents than before - typically 30% of normal starting amps.
-
Automatic adjustment of the compressor starting current to the available supply voltage - maintaining constant starting torque and current.
-
Supply line impedance monitoring and compenaation.
-
Automatic compensation for residual backpressure in the system.
-
Monitoring of supply voltage while compressor is running to prevent motor stalling, causing excessive currents, under low voltage conditions.
-
A compact, fully self-contained unit aimed at the single-phase compressor market, and is suited to both split systems and room models.
-
Light flicker reductions of up to 10:1 over LRA under the same conditions.
-
Totally self-contained, compact, and lightweight (5.12 x 2.56 x 2.17 in. and weighing less than 1.1 lb.)
-
Housed in a flame-retardant ABS plastic enclosure.
-
Enables easy installation either at the factory or in the field with full and detailed installation instructions supplied.
-
CE and RoHs compliant.
-
Proven performance in the field.
|
